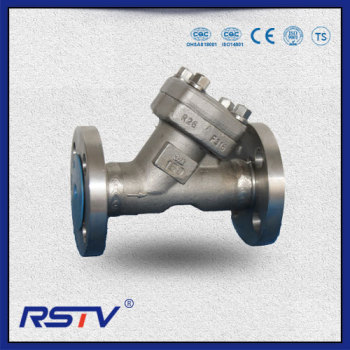

Forged Steel Flange Y type Strainer

Forged Steel Flange Y type Strainer
Forged Steel Flange Y type StrainerForged Steel Flange Y type StrainerForged Steel Flange Y type StrainerForged Steel Flange Y type Strainer
group name
FORGED STEEL VALVE
Min Order
1 piece
brand name
RST/OEM
Nearest port for product export
SHANGHAI, NINGBO
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash
update time
Mon, 28 Sep 2020 16:22:14 GMT

Paramtents

  • Size 1/2''~2''

  • Pressure 150LB~2500LB

  • Material A105/F304/F316/F11/F22/F51/F91

  • Ends RF/RTJ/FF/FM

Packging & Delivery

  • Min Order1 piece

Briefing

STAINLESS steel y strainer, Steel Flange Y type Strainer, forged steel y strainer, flange y strainer, API602 flange Y strainer

Detailed

Forged Steel Flange Y type Strainer

Applicable Standard:

1. Cast Y Strainer, ASME B16.34

2. Steel Valves,ASME B16.34

3. Face to face ASME B16.10

4. End Flanges ASME B16.5/ASME B16.47

5. Butt welded ends ASME B16.25

6. Inspection and test API 598



Service Considerations:

7. For maximum protection, collected material must be discharged through the blow-off connection on a routine basis.

8. A permanent blow-down line and ball valve with each strainer will result in simplified cleaning.

9. Install horizontally or vertically with dirt collecting inside the screen.

10. Screen can also be removed and cleaned with solvent and compressed air.

11. Inspect the gasket and replace if necessary when replacing the screen.


Specification:
Brand
RST
1.Material
F304/316/304L/316L ( CF8/CF8M/CF3/CF3M), A105,F11,F22,F51,LF2  etc.
2.Size
1/2’’~4’’
3.Certificates
ISO9001 & CE, TS
4.Port
Full Port
5.Working Pressure
150LB~2500LB/PN16~PN160
6.Connection Ends
RF, RTJ, etc.
7.Working Temp
-20~425℃, or according to customer requirements for different industry.
8.Suitable Medium
Water, Natural Gas, Oil and some corrosive liquid
9. Operated
Handwheel Operated, Gear, Actuators
10.Valve Test
100% quality tested before delivery
Shipment
Delivery Time
15~30 Days
Package
Standard Exporting Plywood Case
Shipping Port
Ningbo/Shanghai, China
Shipping Terms
Exw, FOB, CFR, CIF, etc.
Payment Terms
T/T, B/L, D/A, D/P, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Valve Guarantee
18 month after shipments
Valve Sample
Sample available by RST VALVE
MOQ
1 SET
Application:

The Y-Type Strainer is the most common and economical type of strainer for permanent applications, suitable for liquid, steam and gas mediums. Due to the compact and low weight construction the easy and quick cleaning are Y-Type Strainers used in manifoldly manners like:

• Pump protection,

• Flow meter protection,

• Valve and regulator protection,

• Protection of heat exchanger and refrigerating set,

• Protection of steam traps,

• Instrumentation and ancillary piping item protection
