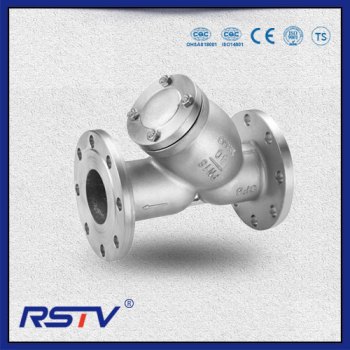

API/EN Stainless Steel Flange ends Y Type Strainer

API/EN Stainless Steel Flange ends Y Type Strainer
API/EN Stainless Steel Flange ends Y Type StrainerAPI/EN Stainless Steel Flange ends Y Type StrainerAPI/EN Stainless Steel Flange ends Y Type StrainerAPI/EN Stainless Steel Flange ends Y Type Strainer
group name
Y STRAINER
Min Order
1 piece
brand name
RST/OEM
Nearest port for product export
SHANGHAI, NINGBO
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash
update time
Mon, 28 Sep 2020 16:40:02 GMT

Paramtents

  • Size 2''~24''

  • Pressure 150LB~300LB

  • Material 304/316/304L/316L/WCB, etc.

  • Ends RF

Packging & Delivery

  • Min Order1 piece

Briefing

stainless steel Y Strainer, Flange SS Y Strainer, API Flange Y Strainer, SS Y Strainer

Detailed

API/DIN Standard Flange ends Y Type Strainer

Applicable Standards:

1. Design & Manufacture standard: ASME 16.34/DIN12516-1

2. Pressure & Temperature standard: ASME B16.34/DIN2401

3. Face to face dimension standard: ASME B16.10/EN558

4. Flange standard: ASME B 16.5, ASME B16.47/EN1092

5. Test & Inspect standard: API 598/EN12266


Product Feature:

1. Easy cleaning without interrupting the process.

2. Various perforations, mesh or perforation mesh combinations are available to meet your process requirements.

3. Can be installed either in a horizontal or vertical position.


Specification:
Brand
RST
1.Material
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
2.Size
2’’~24’’
3.Certificates
ISO9001 & CE, TS
4.Port
Full Port
5.Working Pressure
150LB/300LB/600LB/900LB/1500LB/PN16/PN25/PN40/PN64/PN160
6.Connection Ends
RF, RTJ, etc.
7.Working Temp
-20~425℃, or according to customer requirements for different industry.
8.Suitable Medium
Water, Natural Gas, Oil and some corrosive liquid
9. Screen
According to customer’s requirement in screen mesh
10.Valve Test
100% quality tested before delivery
Shipment
Delivery Time
15~30 Days
Package
Standard Exporting Plywood Case
Shipping Port
Ningbo/Shanghai, China
Shipping Terms
Exw, FOB, CFR, CIF, etc.
Payment Terms
T/T, B/L, D/A, D/P, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Valve Guarantee
18 month after shipments
Valve Sample
Sample available by RST VALVE
MOQ
1 SET
Design and Operation:

The Y-Strainers consists of a housing with opposite arranged inand outlet flanges at the same level. Between these connections is a basket strainer made of a perforated plate, optionally covered with a cloth consisting of various materials and mesh widths. The medium to be filtered will enter the filter from the inside to the outside. Hence, the contaminations will remain within the strainer insert. The Y-Strainer could be depressurizing through the venting or draining devices. After removing of the flap the complete basket strainer could be easily removed out of the filter housing. Now the strainer can be cleaned by blowing out or blasting using compressed air, steam, or water. If necessary, the strainer should be soaked and cleaned using a suitable agent. Possibly, an optimal cleaning will be obtained using ultrasonics. The housing could be manufactured by forged steel, cast iron or a weldment (pipes and flanges). Y-Strainer can be installed both in the horizontal and vertical positions without any effect on performance providing the screen is installed in the downward position to assist draining and cleaning operations.


Applications:

1.Chemical Industry

2. Petro-chemical Industry

3.Plant Construction

4. Power Plant Engineer

5. Paper & Pump Industry

6. Mining

7.Gas Utilities

8. Environment Technologies

9. Steam Generation

10.Drink water

11. Sewage water industry
