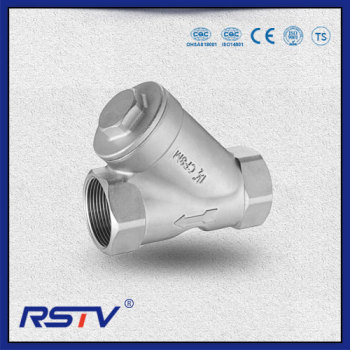

Stainless Steel Threaded ends Y Type Strainer 800WOG

Stainless Steel Threaded ends Y Type Strainer 800WOG
Stainless Steel Threaded ends Y Type Strainer 800WOGStainless Steel Threaded ends Y Type Strainer 800WOGStainless Steel Threaded ends Y Type Strainer 800WOGStainless Steel Threaded ends Y Type Strainer 800WOGStainless Steel Threaded ends Y Type Strainer 800WOG
FOB Price

US $1.861 - 1 set

group name
Y STRAINER
Min Order
1 set
brand name
RST/OEM
model
GL11W
Nearest port for product export
SHANGHAI, NINGBO
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Westem Union, Cash
update time
Wed, 12 Aug 2020 11:01:01 GMT

Paramtents

  • Size 1/4''~4''

  • Pressure 800PSI

  • Material CF8/CF8M/CF3/CF3M

  • Threaded ends NPT/BSPP/BSPT/DIN259/DIN2999

Packging & Delivery

  • Min Order1 set

Briefing

stainless steel Y strainer, threaded Y strainer, Y type 800PSI strainer, ss y strainer

Detailed

Cast Steel Threaded ends Y Type Strainer 800WOG

Product Feature:


1. Strainers are available with threaded (NPT/BSP/BSPT) or socket weld inlet/outlet connections.


2. Strainer body meets applicable ASME Standard..


3. One piece precision investment cast body.


4. Strainers equipped with threaded cover cap that utilize a flat gasket seal.


5. Upper and lower machined seats.


6. 304 SS perforated screens are standard.


7. Drain/Blow-off connection furnished with plug as standard.


8. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.





Specification:


Brand
RST
1.Material

SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB

2.Size
1/4’’~4’’
3.Certificates
ISO9001 & CE, TS
4.Port
Full Port
5.Working Pressure
800PSI
6.Connection Ends
NPT/BSPP/BSPT/DIN259/DIN2999
7.Working Temp
-20~425℃, or according to customer requirements for different industry.
8.Suitable Medium
Water, Natural Gas, Oil and some corrosive liquid
9. Screen
According to customer’s requirement in screen mesh
10.Valve Test
100% quality tested before delivery
Shipment
Delivery Time
15~30 Days
Package
Standard Exporting Plywood Case
Shipping Port
Ningbo/Shanghai, China
Shipping Terms
Exw, FOB, CFR, CIF, etc.
Payment Terms
T/T, B/L, D/A, D/P, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Valve Guarantee
18 month after shipments
Valve Sample
Sample available by RST VALVE
MOQ
1 SET
Service Considerations:

1. For maximum protection, collected material must be discharged through the blow-off connection on a routine basis.

2. A permanent blow-down line and ball valve with each strainer will result in simplified cleaning.

3. Install horizontally or vertically with dirt collecting inside the screen.

4. Screen can also be removed and cleaned with solvent and compressed air.

5. Inspect the gasket and replace if necessary when replacing the screen.



Application:

The Y-Type Strainer is the most common and economical type of strainer for permanent applications, suitable for liquid, steam and gas mediums. Due to the compact and low weight construction the easy and quick cleaning are Y-Type Strainers used in manifoldly manners like:

• Pump protection,

• Flow meter protection,

• Valve and regulator protection,

• Protection of heat exchanger and refrigerating set,

• Protection of steam traps,

• Instrumentation and ancillary piping item protection
